Product Details

5kWh 100Ah 51.2V
Home Energy Storage

5kWh 100Ah 51.2V

51.2V 100Ah LiFePO4 Wall-mounted Battery

Inquiry Back

DETAILS

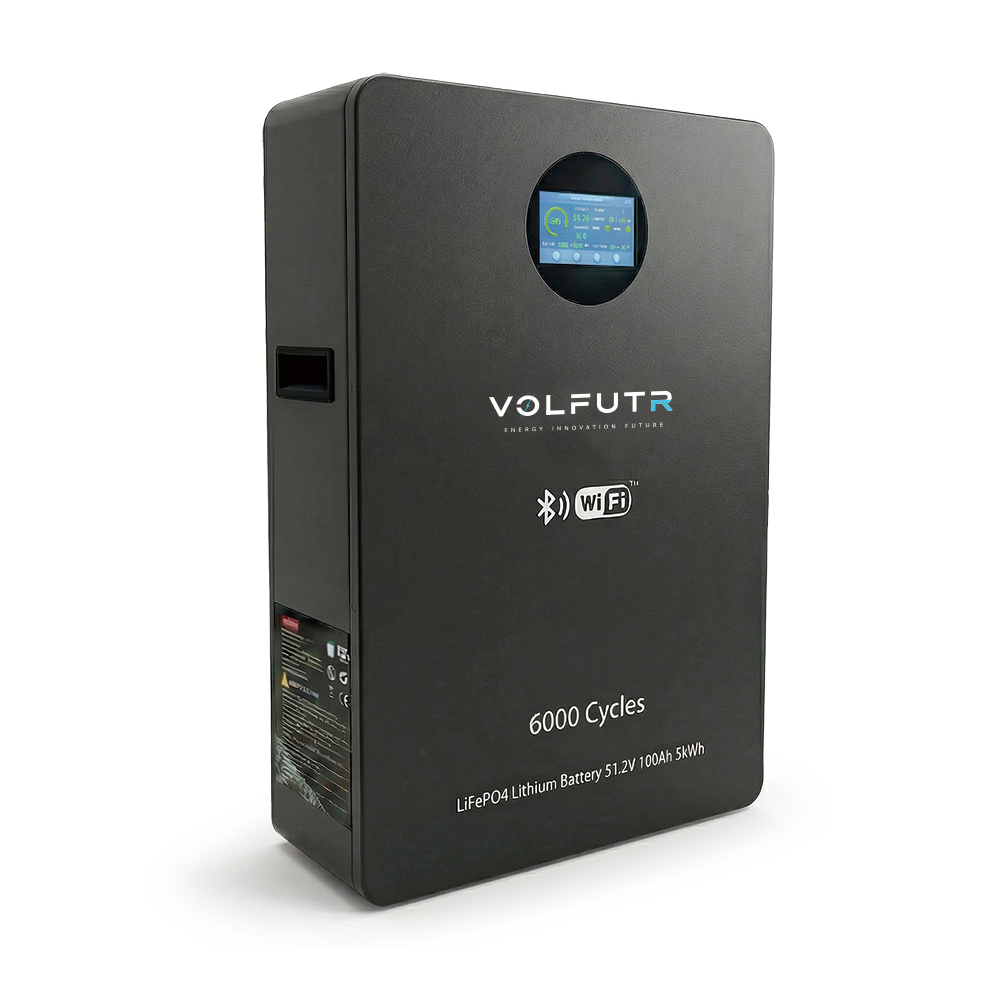

Product VOLFUTR 51.2V 100Ah LiFePO4 Wall-mounted Battery
Basic Specifications
  • Rated Voltage: 51.2V
  • Rated Capacity: 100Ah
  • Available Energy: 5120Wh
  • Battery Cell Configuration: 16S1P
  • Cycle Life: ≥8000 cycles at 80% DOD, 25°C
Function
  • Parallel Connection: Recommended up to 6 units, supports up to 16 units
  • Remote Monitoring: Bluetooth (optional) / Wi-Fi
  • Protection Level: IP21
Mechanical Specifications
  • Dimensions (L × W × H): 440 × 270 × 550 mm
  • Net Weight: 52 kg
Charge & Discharge Specifications
  • Operating Voltage Range: 44.8V ~ 58.4V
  • Rated Charge/Discharge Current: 50A
  • Peak Current: 100A continuous @ 105A for 10s
  • Rated Power: 2560W
  • BMS Configuration: 16S 200A



Related Products

You may also be interested in

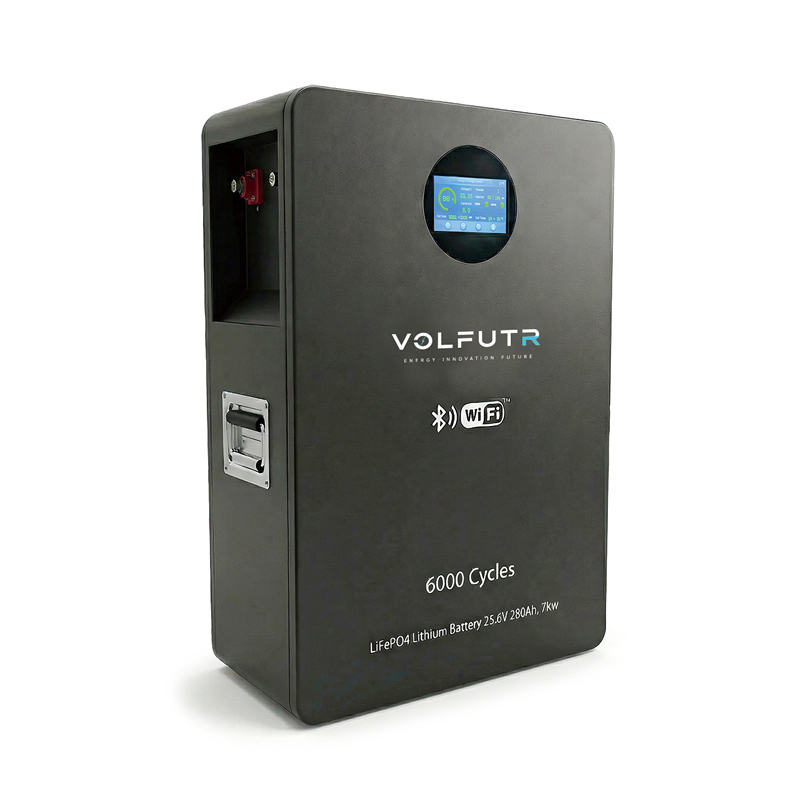

7kWh 280Ah 25.6V
View Details

7kWh 280Ah 25.6V

25.6V 280Ah LiFePO4 Wall-mounted Battery

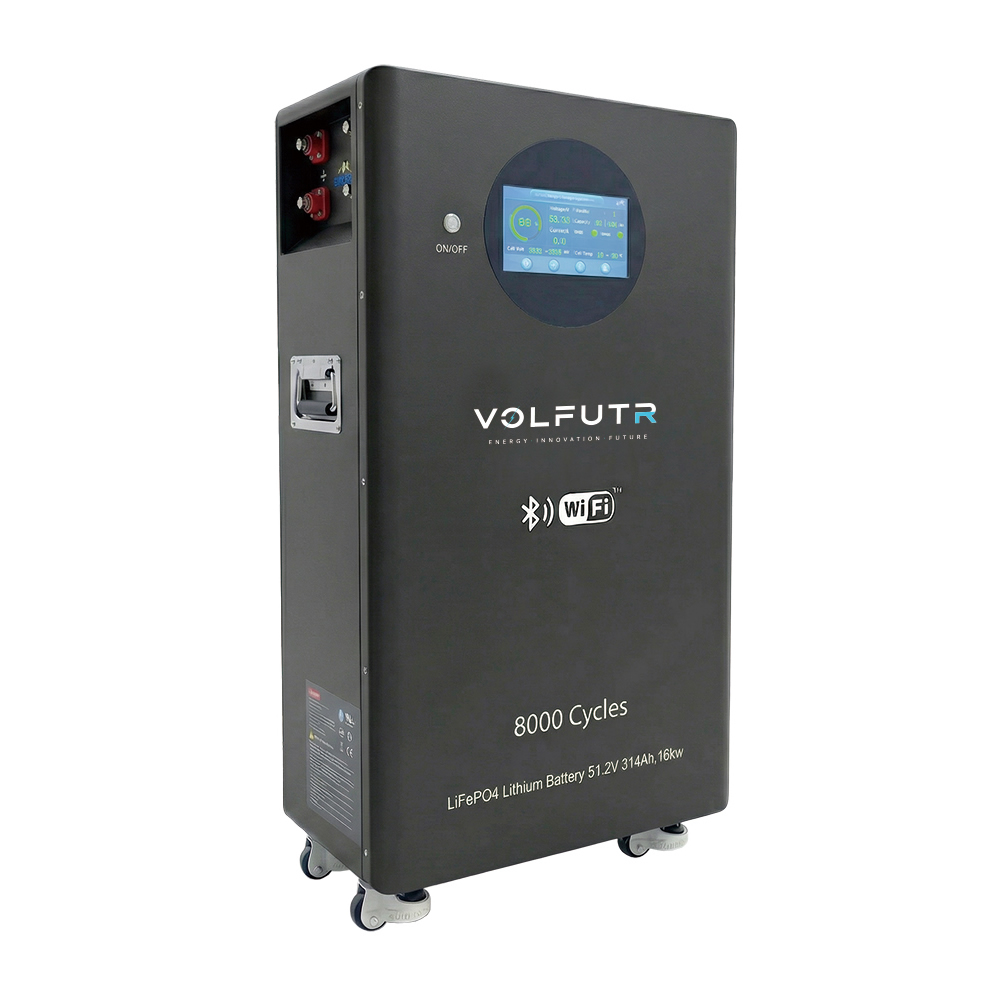

16kWh 314Ah 51.2V
View Details

16kWh 314Ah 51.2V

51.2V 314Ah LiFePO4 Floor-standing Battery

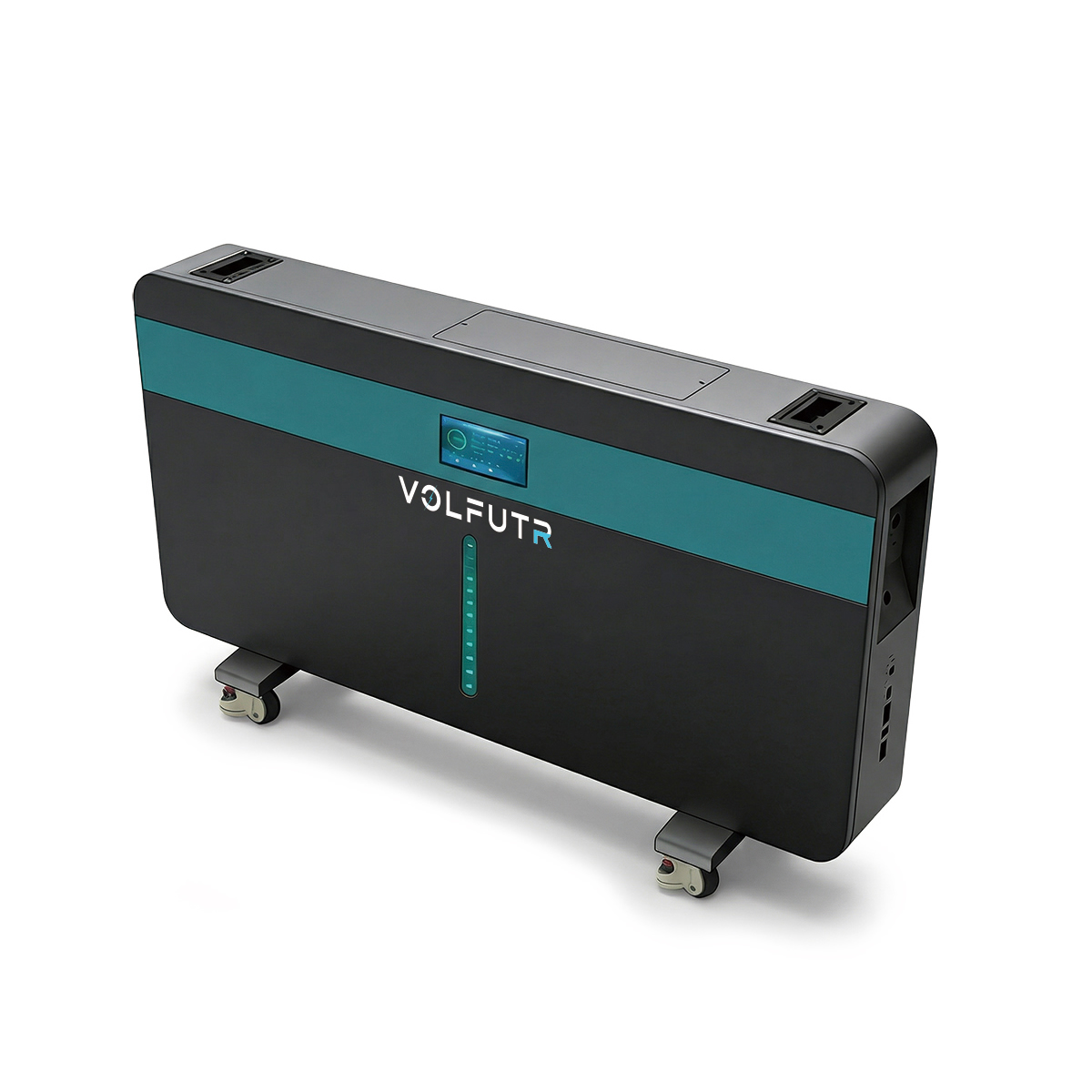

21kWh 420Ah 51.2V
View Details

21kWh 420Ah 51.2V

51.2V 420Ah LiFePO4 Floor-standing Battery

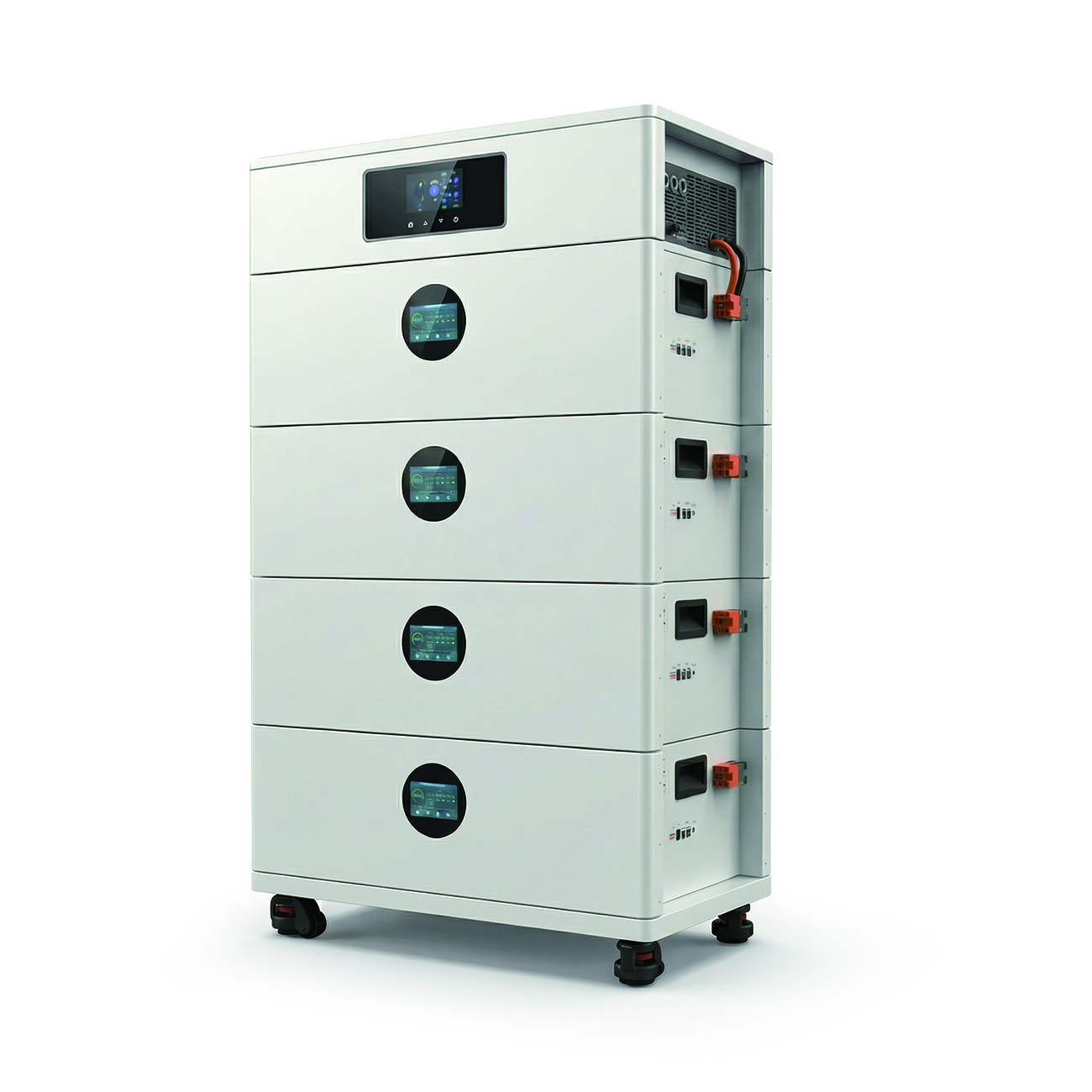

16kWh/pack 314Ah 51.2V Stackable
