Product Details

21kWh 420Ah 51.2V
Home Energy Storage

21kWh 420Ah 51.2V

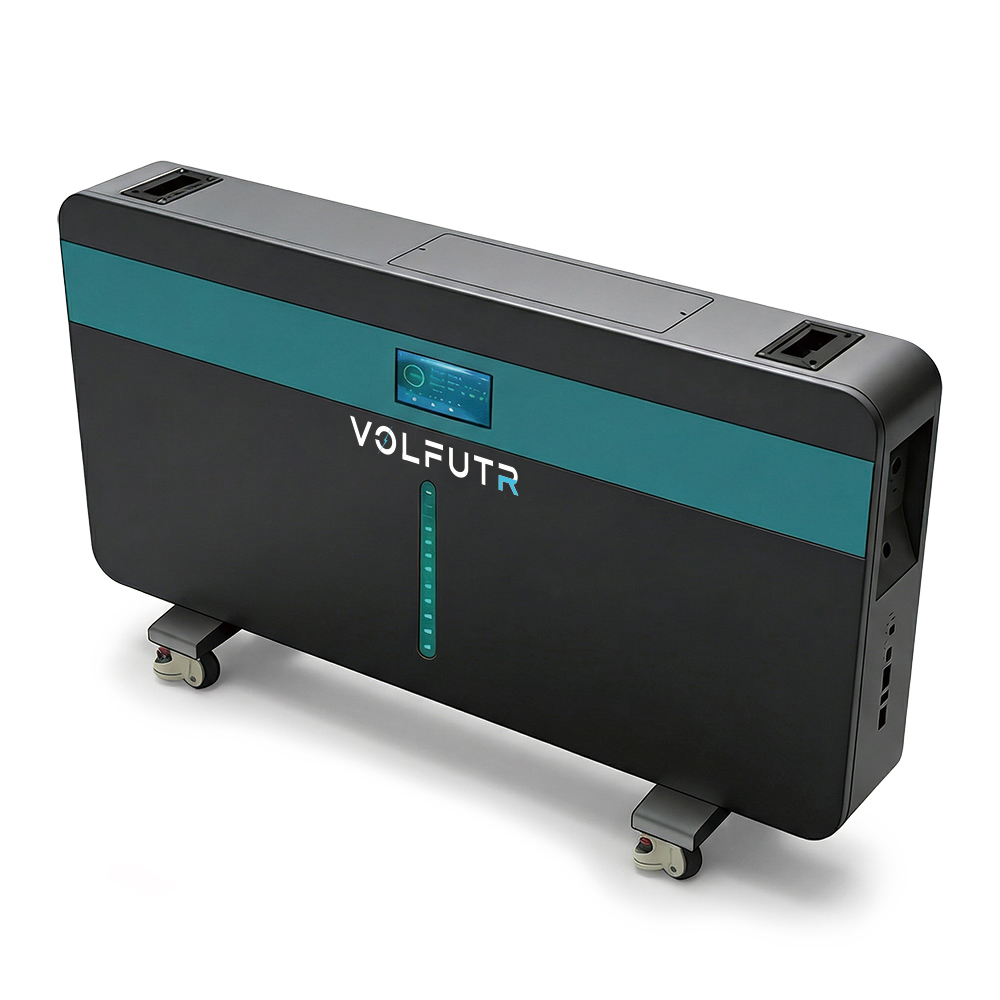

51.2V 420Ah LiFePO4 Floor-standing Battery

Inquiry Back

DETAILS

Product VOLFUTR 51.2V 420Ah LiFePO4 Battery
Basic Specifications
  • Rated Voltage: 51.2V
  • Rated Capacity: 420Ah
  • Available Power: 21500Wh
  • Battery Cell Configuration: 16S2P
  • Cycle Life: ≥8000 cycles at 80% depth of discharge (DOD), 25℃
Function
  • Number of parallels: It is recommended to connect 6 units in parallel (supports up to 16 units in parallel)
  • Remote data: Bluetooth (optional) / Wi-Fi
  • Protection Level: IP21
Mechanical Specifications
  • Product dimensions (L × W × H): 1100 × 360 × 240 mm
  • Net weight: 142 kg
Charge & Discharge Specifications
  • Operating voltage range: 44.8V ~ 58.4V
  • Rated charge and discharge current: 150A
  • Peak current: 300A Continuous @ 305A 10S
  • Rated charge and discharge power: 7680W
  • Battery Management System Configuration: 16S300A
