Product Details

20kWh 400Ah 51.2V with inverter
Home Energy Storage

20kWh 400Ah 51.2V with inverter

51.2V 400Ah 20kWh All-in-One(with inverter) Energy Storage System

DETAILS

Product

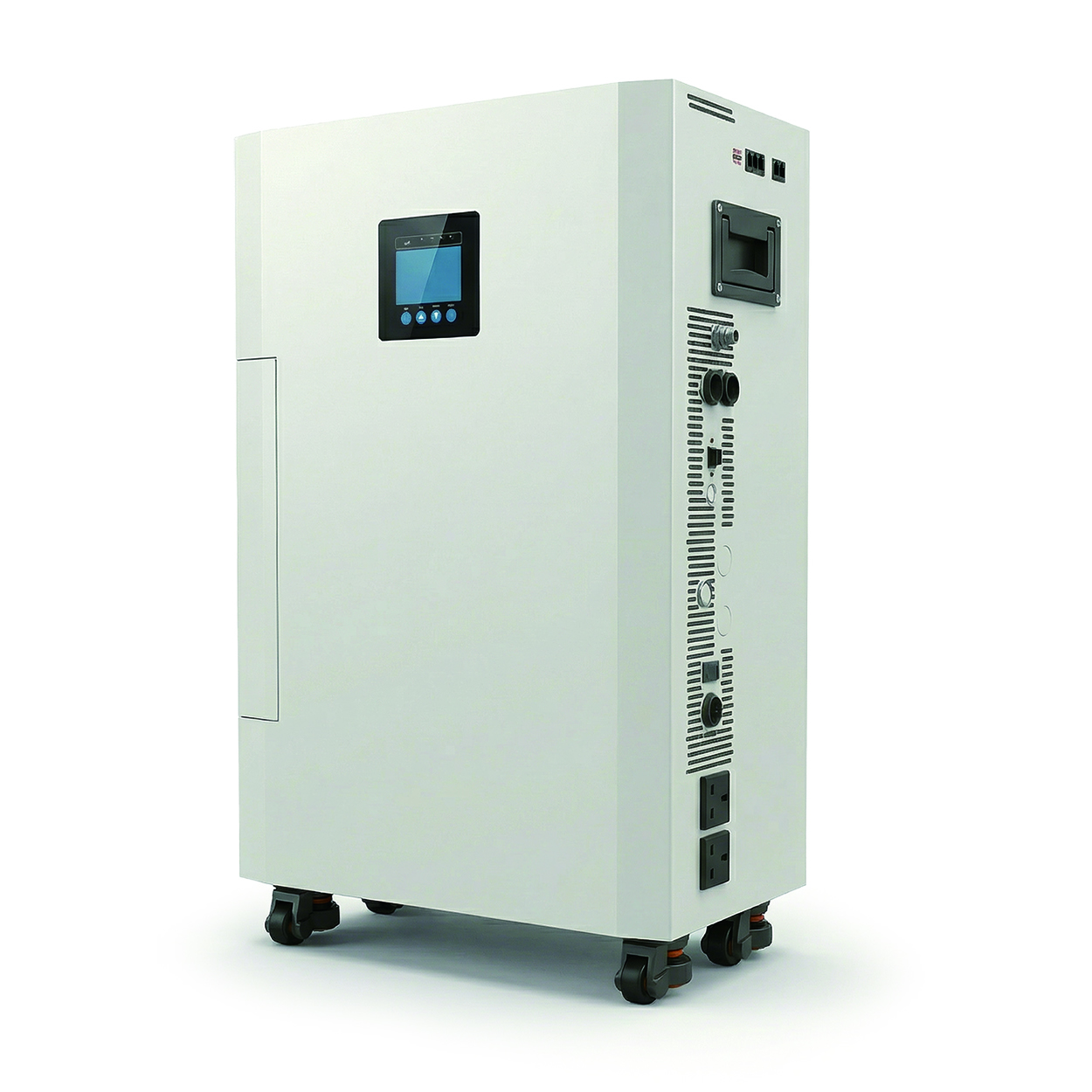

VOLFUTR 51.2V 400Ah 20kWh All-in-One Energy Storage System



Basic Specifications
  • System: 20kWh battery pack single inverter 5000W
  • Battery type: LFP 51.2V 400AH
  • Rated Power: 5000W / Peak 10000VA
  • AC Voltage (Battery Mode): 230VAC (185-240VAC ±5%)
  • Cycle Life: 8000 cycles
Function
  • AC Charging: Max. 80A
  • MPPT Charging: 6000W, 60-450VDC, Max. 80A
  • Recommended Charging Current: 40A
  • Maximum Charging Voltage: 58.4V
  • Maximum Charging Current: 200A
  • Recommended Discharging Current: 100A
  • Maximum Discharging Current: 200A
  • Supported Features: Bluetooth and App Support (Optional, extra charge required)
Mechanical Specifications
  • Product dimensions (L × W × H): 670 × 300 × 800 mm
  • Product weight: 130 kg
