Product Details

5.5kWh/24V Portable Trolley ESS
Home Energy Storage

5.5kWh/24V Portable Trolley ESS

24V 200Ah 5.5kWh Portable Trolley ESS

Inquiry Back

DETAILS

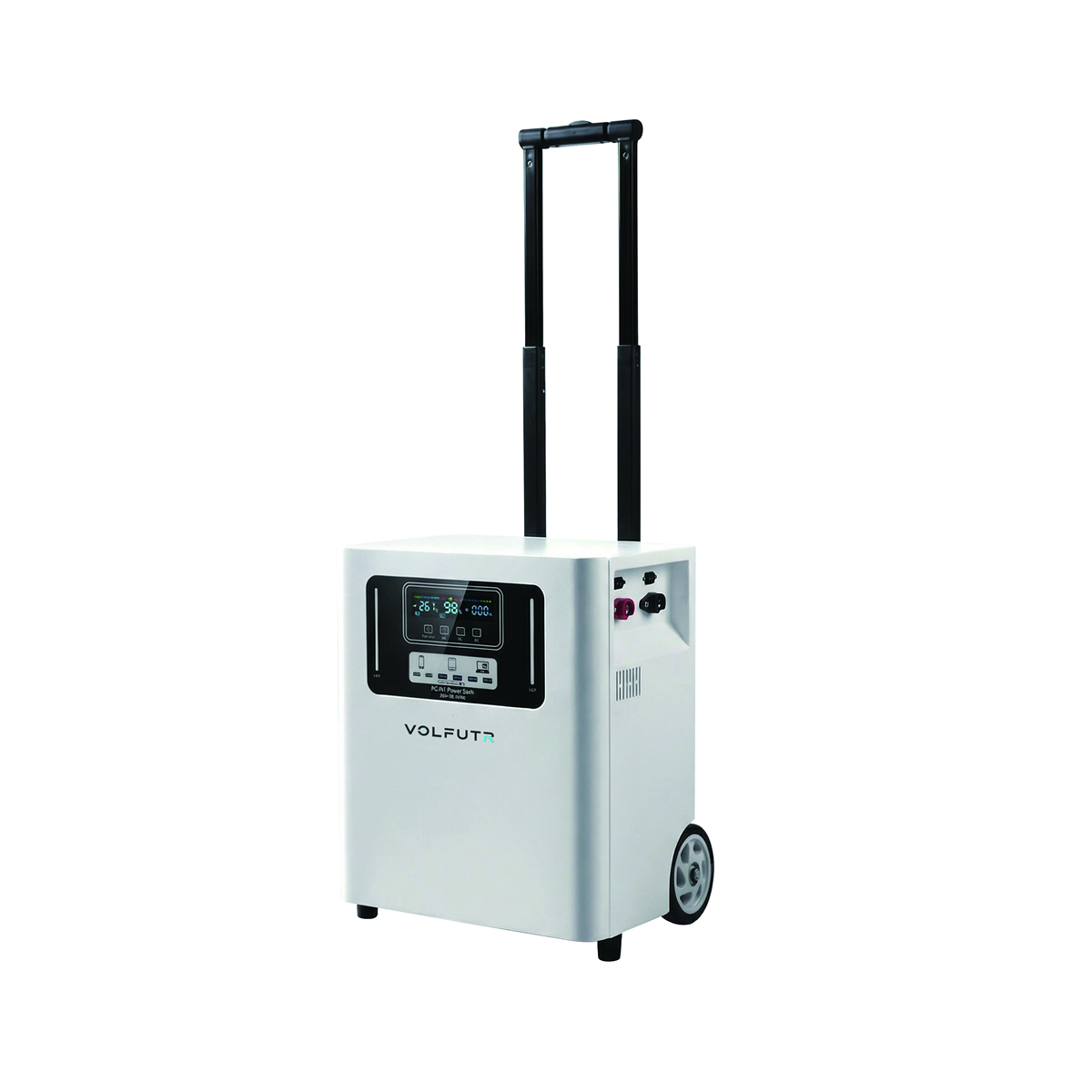

Product VOLFUTR 5.5kWh/24V Portable Trolley ESS
Basic Specifications
  • Model: 5500
  • Battery Type: LiFePO4
  • Cycle Life: ≥3000 cycles
  • AC Output Voltage Range: AC 185-220V / 50-60Hz
  • Rated Output Power: 5500W
  • Peak Surge Power: 6500W
  • Battery Capacity: 5kWh
Output Ports
  • AC Output Ports: 16A × 3
  • USB Output Ports: 24W × 4
  • Type-C Ports: 5V/9V/24W × 2
  • DC 24V Output: 100A
  • XT90 Charging Port: ×1
  • Emergency Lighting: ×2
  • Ambient Light: ×1
Charging Specifications
  • Charging Current: 20A-50A
  • Adapter: 110V-240V 30A 29.2V
  • Solar Panel Charging: MPPT 12V-45V / 500W (max)
  • Inverter Response Time: ≤ 5ms
Protection
  • Overload Protection: 6500W
  • Temperature Protection: ≤ 65℃
Mechanical Specifications
  • Main Unit Dimensions (W*D*H): 410 × 320 × 555 mm
  • Trolley Dimensions (W*D*H): 410 × 320 × 1010 mm
  • Outer Package Dimensions: 620 × 460 × 400 mm
  • Net Weight: 56.4 kg
